High-Pressure Fittings and Connectors

High-Pressure Fittings and Connectors that are typically used in HMS test wells, booster systems, and manifolds:

Overview

High-pressure fittings and connectors are precision-engineered components designed to join tubing, valves, manifolds, and instruments in systems operating at extreme pressures. They ensure leak-tight, safe, and reliable connections for hydraulic fluids, gases, and chemicals.

⚙️ Construction & Design

• Material:
  • 316 Stainless Steel (most common, corrosion-resistant).
  • Specialty alloys (Inconel, Monel, Hastelloy) for aggressive environments.
• Pressure Ratings:
  • Medium Pressure: up to 20,000 psi
  • High Pressure: up to 30,000–60,000 psi
  • Ultra-High Pressure: up to 100,000 psi
• Types of Connections:
  • Cone & Thread (C&T): Standard for ultra-high pressure tubing.
  • Compression Fittings: For medium/high pressure, easy assembly.
  • Quick Connectors: For rapid coupling/decoupling in test setups.
  • Flanged Connections: For heavy-duty, large-bore systems.

🔑 Key Features

• Leak-Tight Seal: Metal-to-metal sealing ensures zero leakage under extreme conditions.
• Reusability: Designed for multiple assembly/disassembly cycles.
• Compatibility: Works with SS tubing, manifolds, safety valves, gauges, and transmitters.
• Safety: Built to withstand vibration, thermal cycling, and shock loads.
• Standard Compliance: Manufactured to ASME, API, and ISO standards.

🧪 Applications

• HMS Test Wells: Connects tubing, manifolds, and safety valves in vertical and horizontal setups.
• Booster Systems: Links hydraulic/gas boosters to manifolds and control panels.
• Instrumentation: Provides secure connections for gauges, transmitters, and load cells.
• Pipeline Testing: Used in hydrostatic and leak testing rigs.
• Aerospace & Industrial: High-pressure hydraulic and gas systems.

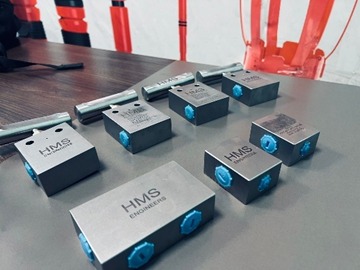

📊 Examples of Fittings & Connectors

✅ In HMS systems, high-pressure fittings and connectors form the critical link between tubing, manifolds, and instruments—ensuring safe, modular, and reliable operation across vertical and horizontal test wells.
